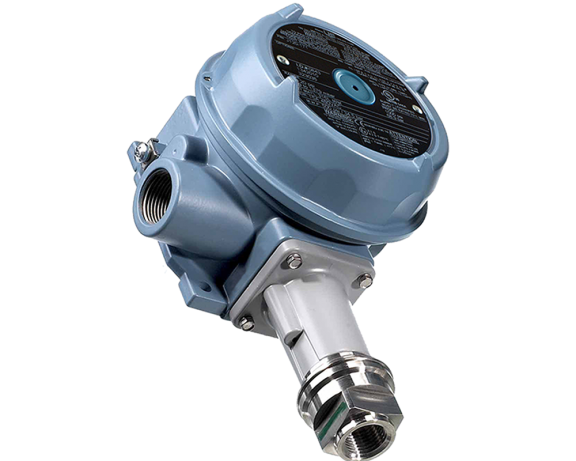

United Electric’s 120 Series meets the requirements for hazardous atmospheres through approvals and certifications, making it the best choice where there is a potentially explosive or highly corrosive atmosphere.
This pressure switch offers a wide range of pressure, vacuum, differential pressure and temperature ranges as well as process connections, materials in contact with liquids and sensor types.
With a flexible common platform, the models can be quickly adapted in the factory for special requirements such as ranges, process connections and electrical ratings.
Download catalogue
Adjustable rangesFrom empty to 413 bar maximumTemperature– 117 ºC to 343 ºCPressure connections1/2 “NPT H or 1/4” NPT H. Other availableMaterials in contactBrass or AISI 316 standardO-materialsBuna N, Viton, Teflon, etc …ProtectionClass I Div 1 & 2 (zone 1); Class II Div 1 & 2; Class III
ADVANTAGES
|
APPLICATIONS
|
CHARACTERISTICS
|
Technical specifications |
||
The Vanguard WirelessHART gas detector from UNITED ELECTRIC is ideal for monitoring toxic and combustible gases without costly, fixed wiring.
With a five-year battery life and a calibration button, the Vanguard detector is easy to operate and maintain. Each detector has a WirelessHART transceiver, antenna, display, long-lasting power module, gas sensor and signal processor for the gas sensor.
Vanguard uses a sensor architecture with the “Flexsense”trademark, which allows the sensor to identify its target gas and self-configure itself to a Vanguard transmitter when connected.
It is currently available with either a non-dispersive (0-100% LEL) infrared methane sensor (NDIR) or an electrochemical hydrogen sulfide sensor (0-100 ppm).
The ONE Series safety transmitter has been designed by UNITED ELECTRIC CONTROLS to simplify installation, increase safety and eliminate false alarms. Redundant self-diagnosis “IAW” of the equipment detects the open/closed state and faulty sensor.
The analog output of the transmitter provides the process variable and fault detected information. It has digital outputs to provide an alarm of equipment failure to execute an emergency stop.
The instrument is password-protected to prevent unwanted parameter changes, eliminating the risk of tampering, and memorizes internally the maximum and minimum values reached.
The LED backlighting incorporated in the equipment improves the visualization of process variables, parameters and status in low light locations.
The Gometrics Model BP101G hand pump is a manual compressor capable of generating up to 10 bar of pressure in closed circuits without volumetric consumption for fine adjustment of the desired pressure.
It is a small, lightweight pump with a purge system for zeroing the loop and a connection to the instrument to be calibrated.
It has a simple system of pneumatic pressure generation without the need for mains supply, being ideal for on-site calibration operations of pneumatic instruments, low pressure measuring equipment, simulation of signals for the processing of P transmitters, pressure switches, valve positioners, pressure gauges, etc.
The H100 Series pressure switch is a perfect combination of efficiency and cost of a pressure switch or thermostat type ideal for plant and machine manufacturer installations. The robust, one-piece construction of its protective housing also facilitates access to the electrical connections.
The wide range of microswitches and process fitting options makes this versatile series an ideal choice for pressure switch applications with weather protection.
Typical applications for this type of Series 100 pressure switch are electrical tracing (heating), antifreeze protection, process equipment (pumps, compressors), alarm panel inputs and fire suppression systems.
Download catalogue
Series 12 pressure switches, known as Spectra 12, are ideal for installations in potentially explosive atmospheres where space is limited.
A quick-acting Belleville washer spring assembly is used which is also vibration-resistant and ensures long switch life.
The hermetic 316 stainless steel enclosure and hermetically sealed micro-switch provide complete environmental protection. Approved for use in all types of hazardous locations, Spectra 12 switches are installed in applications ranging from offshore oil rigs to rotating equipment, power applications and all types of value protections.
Download catalogue
The Series 10, known as Spectra 10 is available with a variety of 7 different electrical connections, a group of different pressure sensors and various process connections and has been designed to meet the requirements of a number of OEM and industrial applications. This cylindrical pressure switch with a diameter of only 24.6 mm and 76.2 mm in height is ideal when the installation space is limited.
This Spectra 10 Series has a very high cost/efficiency ratio and is ideal for applications with high setting values and with pressure peaks and on mobile hydraulic equipment, compactors and oil-hydraulic systems.
Its design flexibility allows for customized connections with electrical finishes and pressure ranges in “tailor-made” systems.
Download catalogue
The Beamex MC6 is an advanced field calibrator with high accuracy and communicator. It is capable of calibrating and adjusting pressure, temperature and electrical signal instruments. The device also contains a complete fieldbus bus communicator for instruments that are compatible with HART, FOUNDATION Fieldbus and Profibus PA.
One of the most remarkable features of the MC6 is how easy it is to operate. It has a large 5.7″color touch-screen display with a multi-language user interface. Its rugged IP65 class enclosure is dust and waterproof.
Thanks to its ergonomic design and low weight, it is ideal for field measurement in a variety of industries: pharmaceuticals, energy, oil and gas, food and beverage, service, chemical and petrochemical.
Download datasheet
The MCS200 is a modular testing and calibration system for workshops and laboratories, offering efficient and ergonomic facilities for the maintenance of process instruments.
The MCS200 workstation offers a solution for a wide range of applications, such as pressure, temperature and electrical signal calibration, electrical testing and measurement, maintenance and testing of single-phase and three-phase motors, and other electrical devices, welding and desoldering, training applications, etc.
Its advanced design offers many advantages, such as easier installation, height-adjustable module racking and top, dual panel capability, 2 bench-joined 3-leg solution, LED luminaire and mobile accessories under the top.
The module rack houses a wide variety of modules including calibration modules, AC and DC power supplies, multimeters, function generators, oscilloscopes, etc.
This makes the MCS200 the perfect workstation for instrumentation and electrical workshops, as well as laboratories.
Download datasheet
