Tinycal series calibrators / simulators

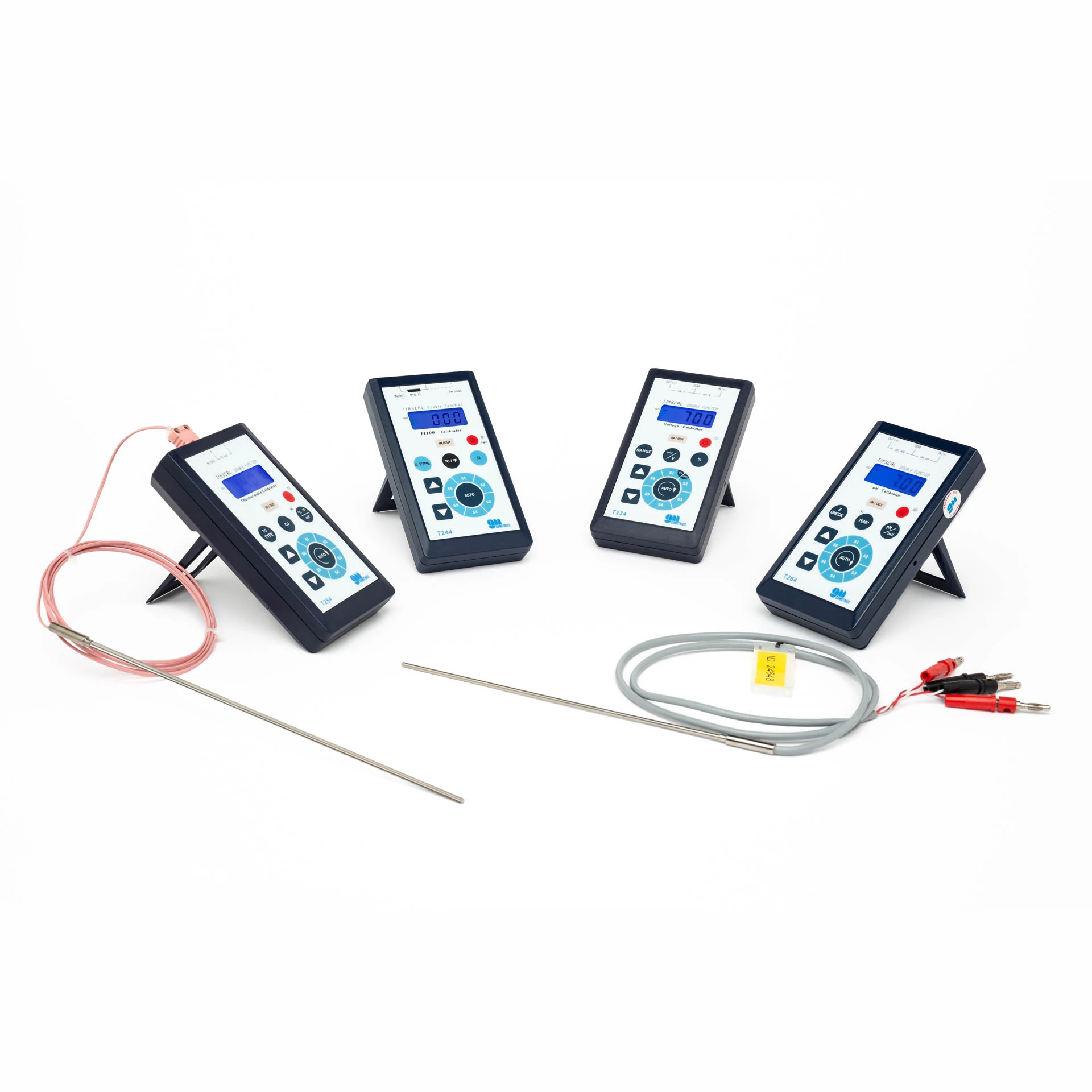

All Tinycal series instruments are dual function: generation/simulation and measurement. Keys on the instrument’s front panel enable configuration for generation of set values in either engineering units or percentages. Panel keys also enable generation in steps that can be timed for 1 to 9 seconds per step, which it memorizes thanks to its 6 configuration keys. Simulation from the instrument —T240 and T250— can be configurated to simulate the sensor response (Pt100 or type of thermocouple selected).

The measurement function is easily selectable with the IN/OUT button, as clearly indicated on the display, which indicates the value to be measured. To prevent possible connection or manipulation errors, the measurement circuit is protected againstshort-circuits and external voltage up to 30 V, guaranteeing the instrument longer service life. The T220 and T225 models of Tinycal family are equiped with an integrated 24-V dc sypply, enabling power supply to the loop from the calibrator (active mode), or volontarily in passive mode.

All the instruments of the Tinycal family offer high precision and high-resolution measurements, which, together with their ease of use, high reliability and convenient transport, as well as reduced weight and small size, make them basic standards in an instrumentation workshop.



Download data sheet

ADVANTAGES

  • Measurement/Generation with one unique tool
  • Great precision
  • High resolution

APPLICATIONS

  • Calibration of transmitters 4-20 mA and 0-10V, Pt100 probes, TC and pH
  • Measurement and generation/simulation

CHARACTERISTICS

  • In anticipation of possible connection or manipulation errors, the measuring circuit is protected against short-circuit and external tensions until 30V
  • Rechargeable batteries with great autonomy

DATA SHEET

Technical features common in the Tinycal series
Operational temperature 0 to 50 ºC
Temperature coefficient 0,003% /ºC
Power supply to loop 24 Vcc (models T220 / T225)
Rechargeable batteries NiMH
Runtime 16 hours
Power supply to batteries charger 230 V 50 Hz
Display LCD, 41/2 digits, 10 mm high
Dimensions 83 x 152 x 33 mm
Weight 240 to 300 gr.
Generation Manual or automatic
Step time Programmable between 1 and 9 seconds
Label EC
Warranty 2 years
Signal 4-20 mA
Range 0-24 mA
Input impedance 10 Ω
Accuracy at 23ºC ± 3ºC ± 0,015% FS
Uncertainty 1 year ± 0,025% FS
Resolution 0,001/0,01 mA
Function Active or passive measurement and generation selectable by connection
Runtime 150 hr measuring; 11 hr generating 20 mA with internal supply
Signal 10 – 50 mA
Range 0 – 51 mA
Signal 0-10 V cc
Range 0-12,000 V
Input impedance >1 M Ω
Accuracy at 23ºC ± 3ºC ± 0,015% FS
Uncertainty 1 year ± 0,025% FS
Resolution 0,001 V
Function Measurement and generation
Signal Resistencia and Pt100 (as per IEC 751)
Simulation range 80 to 390 Ohms (-50 to 850 ºC) (simulation current is 0,1 a 2 mA)
Simulation response 2 mS (accepts pulsating transmitters/indicators)
Accuracy at 23ºC ± 3ºC -50 to 150 ºC: 0.1 ºC (up to 850 ºC:0.2 ºC)
Uncertainty 1 year -50 to 150 ºC: 0.2 ºC (up to 850 ºC: 0.4 ºC)
Measurement range 20 to 320 Ohms (-220 to 600 ºC) (current applied 1mA aprox.)
Input impedance >10 M Ω
Accuracy at 23ºC ± 3ºC -220 to 150 ºC: 0.1 ºC (± 1 count); up to 600 ºC: 0.2 ºC (± 1 count)
Uncertainty 1 year 220 to 150 ºC: 0.2 ºC (± 1 count); up to 600 ºC: 0.4 ºC (± 1 count)
Resolution 0.1 Ohm or 0.1 ºC/0.2 ºC
Function Measurement and generation/simulation
Signal Thermocouple
Type E, J, K, R, S, T (as per IEC 584-1)
Range -15.00 to 75.00 mV and equivalence in ºC depending on thermocouple:

  • Thermocouple E: 0ºC to 800ºC
  • Thermocouple J: -180ºC to 750ºC
  • Thermocouple K: -150ºC to 1350ºC
  • Thermocouple R: -50ºC to 1700ºC
  • Thermocouple S: -50ºC to 1700ºC
  • Thermocouple T: -250ºC to 400ºC
Input impedance > 10 MΩ
Accuracy at 23ºC ± 3ºC ± 0,025% FS
Uncertainty 1 year ± 0,05% FS
Resolution 0,01 mV and 1ºC
Function Measurement and generation/Simulation
Cold joint compensation Internal or manual from 0 to 50ºC
Signal pH
Ranges -450 to +450 mV; 0,00 to 14,00 pH
Input impedance > 1000 GΩ
Accuracy at 23ºC ± 3ºC ± 0,025% FS
Uncertainty 1 year ± 0,05% FS
Includes Input impedance check function appropriate for the pH measurement devices
Resolution 0,01 mV and 1ºC
Function Measurement and generation/simulation
