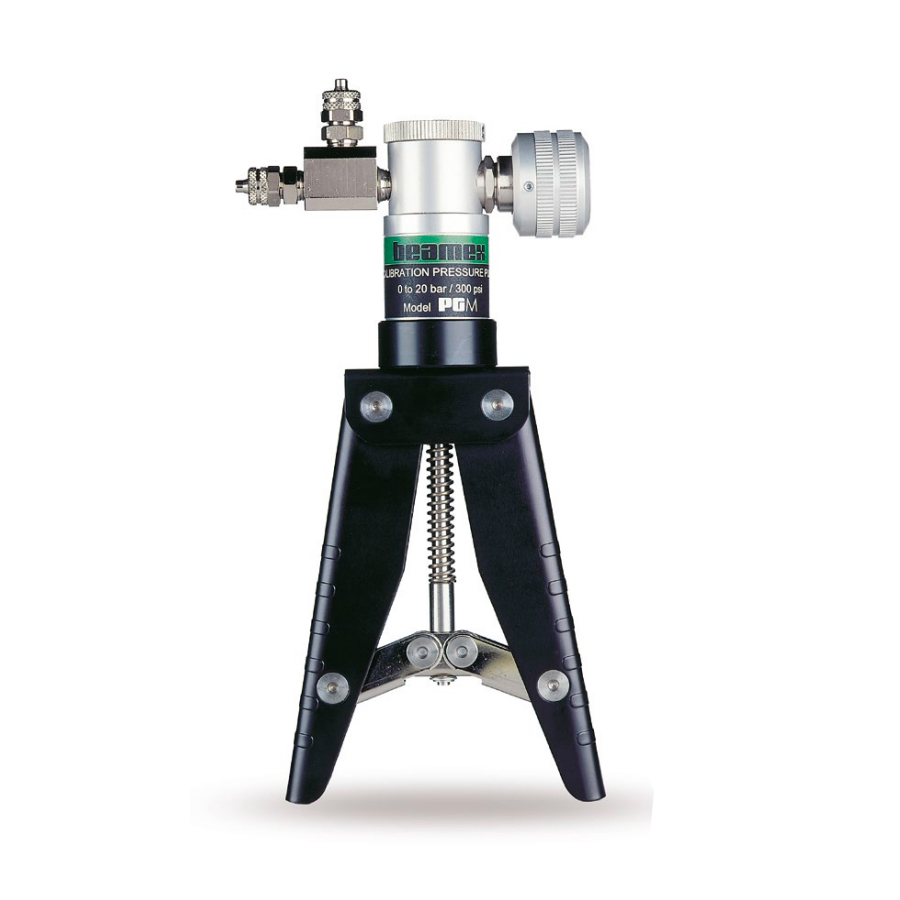

Low pressure generation pump PGM

Low pressure generation pump PGM

The PGM is a hand-held portable pressure calibration pump that uses air as fluid.

Extremely precise volume control allows for excellent fine pressure adjustment.

The robust and unique construction of this pump makes it the best tool for field calibration.

Download datasheet

ADVANTAGE

  • Excellent fine pressure adjustment
  • Ideal for field calibration
  • Robust and unique construction

APPLICATIONS

  • Pressure measurement and calibration
  • Pressure generation
  • Sectors of activity: Process industries in general

CHARACTERISTICS

  • Working range: 0 … 20 bar / 0 … 300 psi
  • Fluid: air

Technical specifications
Pressure range 0…20 bar / 0…300 psi fluid Air Connections 2 x 1/8″ NPT female Dimensions 223 mm x 96 mm x 38 mm Weight 400 g Standard accessories
  • Spare parts set
  • Allen wrench
  • Adapters: 1/8″ male gas, 60º internal cone seal, 2 x 1/8″ ID hose connectors and 2 x 1/8″ ID /1/4″ OD hose connectors with nut.
 Optional accessories
  • Case
  • Set of tubing with “T” and connectors
  • 1.5 m Flexible
