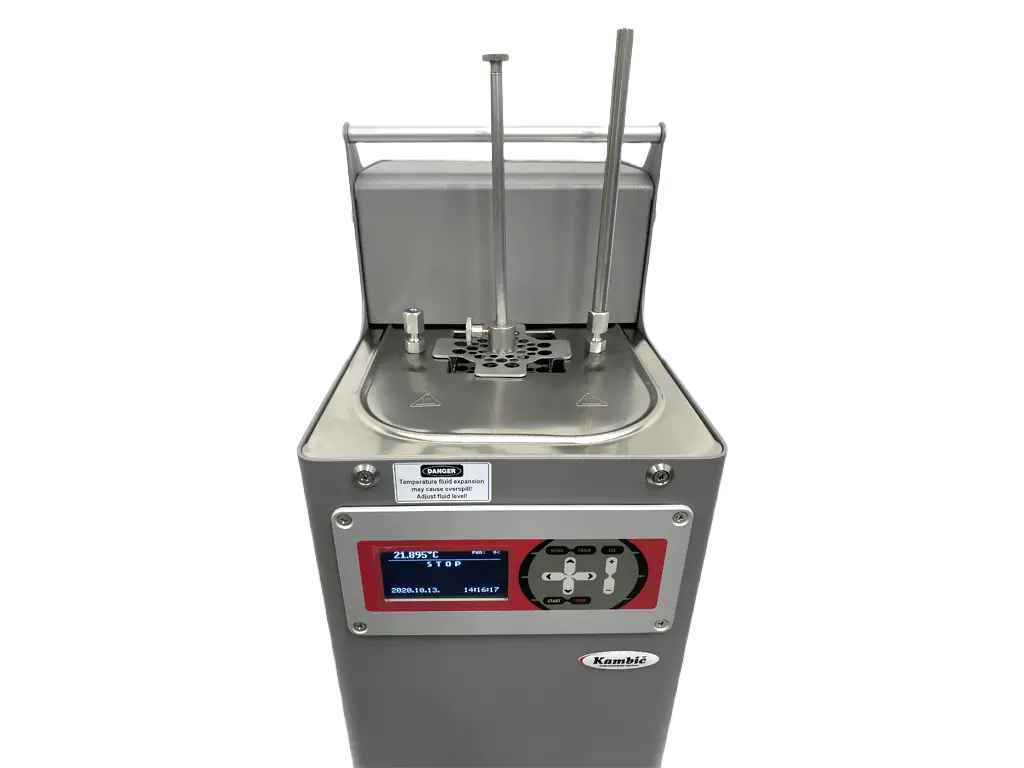

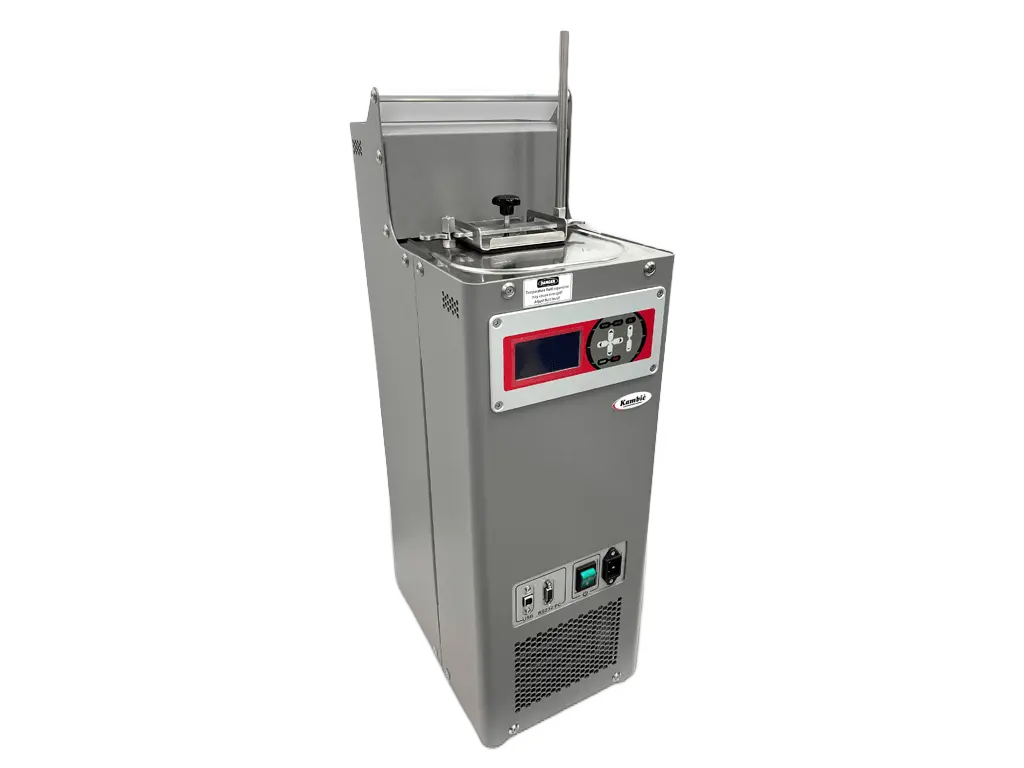

OBM & OBM-LT Low Temperature Calibration Micro Bathes
Kambic's OBM and OBM-LT low temperature calibration microbathes are available to our customers.
The two microbath models are configured using a touch screen with an easy-to-use user interface, allowing the display of historical graphics and advanced settings.
It has handles on the top for better handling and portability, each handle has holes to place cables and sensors.
Download catalogue
ADVANTAGE
Touch screen with an easy-to-use user interface
Improved handling and portability
Four sides allow access for micro bath maintenance
APPLICATIONS
Calibration laboratories
Testing laboratories
Universities and R&D centres
Chemical and pharmaceutical industry
Food processing industry
CHARACTERISTICS
Stainless steel fork on the cover, anti-spill and drip protection
Unique vertical design
Drain valve
Technical specifications
Temperature range
OBM: +35 … + 220
OBM-LT: -40 … + 130
Volume (L)
~1
External dimensions
OBM: 203 x 489 x 311 mm
OBM-LT: 203 x 609 x 311 mm
Internal dimensions
56 x 200 mm
Display temperature resolution
0.001
Temperature stability
OBM: 0.005 a +50 °C / 0.008 a +100 °C
OBM-LT: 0.007 a -40 °C / 0.005 a +50 °C / 0.008 a +100 °C
Temperature uniformity
± 0.02 a +50 °C
Warm-up speed
~ 36 min (40 °C a 130 °C)
Communication ports
Ethernet, RS 232 o USB
Working chamber
1 L with 200 mm depth of immersion
Refrigeration
Its cooling system is based on a high-performance air compressor
