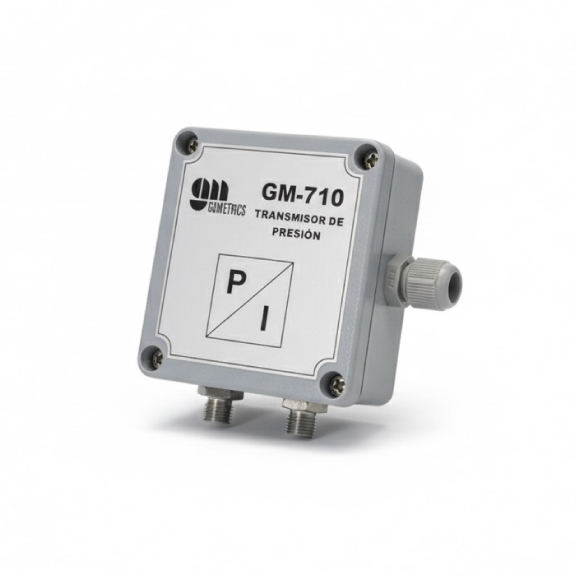

GM-710 P/I Converter

The GM-710 transmitter accepts a pressure signal and converts it to a 4-20 mA current signal.

The piezoresistive sensing element is not isolated from the diaphragm so the fluid must be air or inert gases. The diaphragm is made of silicon.

There is no air consumption, the maximum pressure being twice the specified full scale.

As an option, it can be supplied as a 4-wire transmitter “GM-710F” with 24 Vdc power supply (isolated), and 4-20 mA output (maximum load 1000 Ohm).

Features

Converts a pressure input signal to a current output signal (4-20 mA) for outdoor mounting

Ranges available	0-700 mm H2O 0-3500 mm H2O 0-1 bar 0-2 bar 0-7 bar
Accuracy	0.25% F.S.
Maximum inlet pressure	2 times the maximum value of the range
Power supply	24 V DC, operational from 14 to 40 V DC, varying the maximum circuit impedance
Operating temperature	0 to 50ºC
Temperature effect	0.02% of span/ºC
Dimensions	95 x 95 x 55 mm
