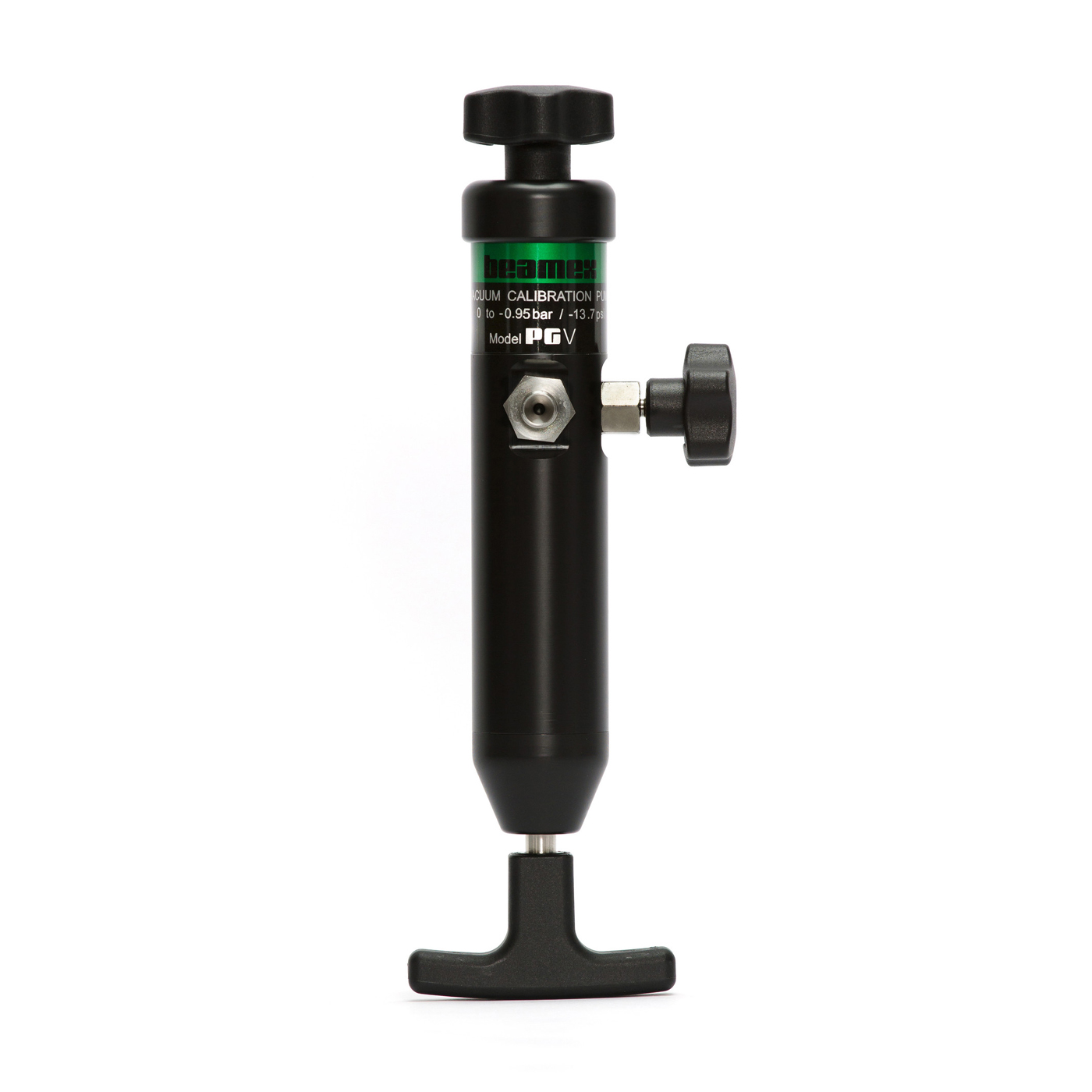

Vacuum generation pump PGV

The PGV is a new high efficiency hand pump that allows the generation of vacuum quickly.

Thanks to its fine adjustment, the vacuum generated can be precisely achieved.

The PGV is a compact, robust and lightweight pump, ideal for field work.

Download datasheet

Working Range	0 … -0,95 bar / 0 … -13,7 psi
fluid	Aire
Connections	1/8 “male gas, 60º internal cone seal
Dimensions	35 mm (diameter) x 230 mm (min. length) or 322 mm (max. length)
Peso	340 g
Accessories	Spare parts set Access key 1/8″ Gas threaded adapter with 60° to 1/4″ NPT male internal cone seal for connecting the hose to the vacuum port of the instrument to be calibrated. 0.75 m / 2’5 1/2″ pressure hose
Optional accessories	Case 1/8″ male gas threaded adapter with 60° internal cone seal at both ends Set of tubing with “T” and flexible tube connector 1.5 m / 4.9″.
