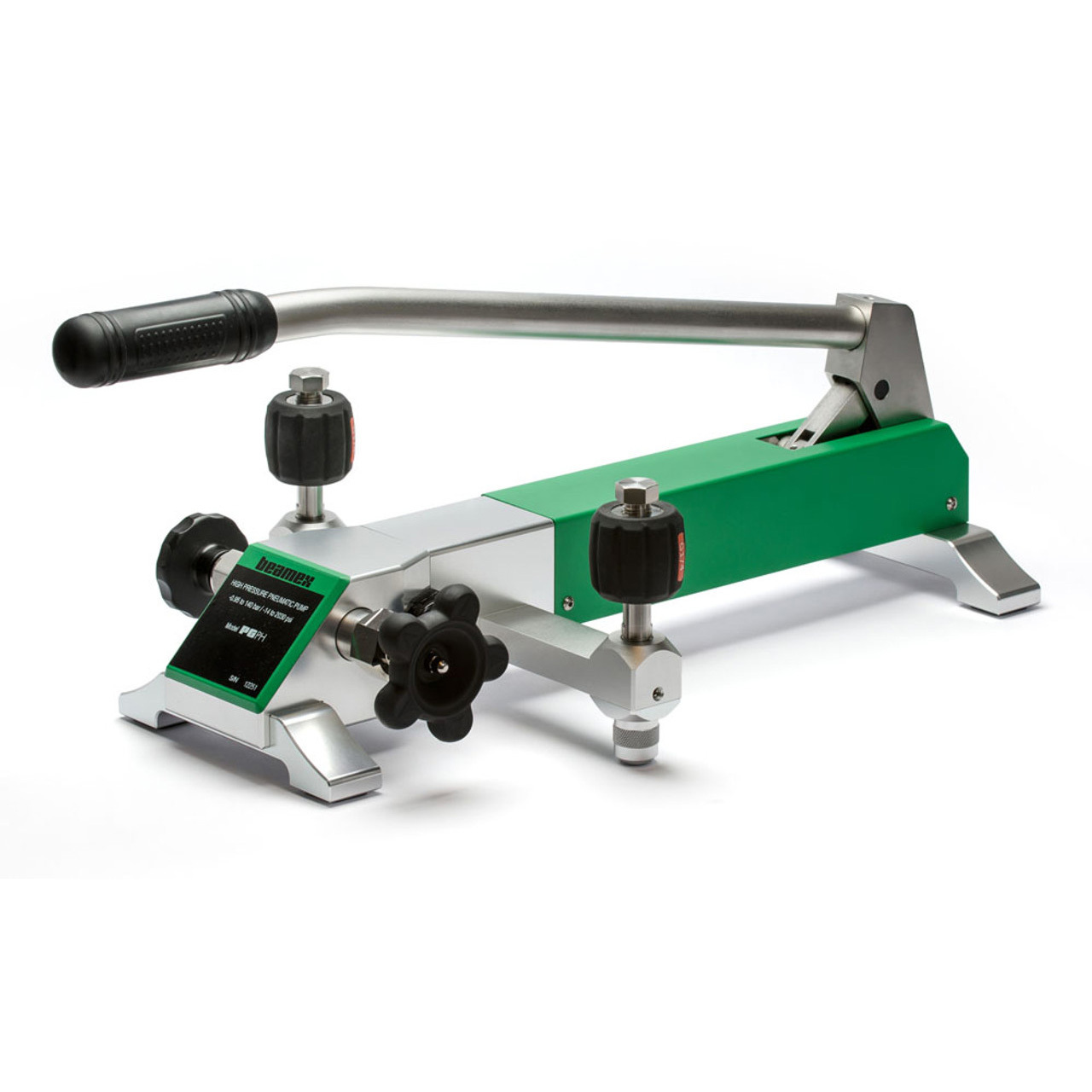

PGPH is a pneumatic hand pump of high pressure generation.
It is an efficient pump for generating vacuum and high pressure up to 140 bar (2000 psi) that takes less than one minute to generate maximum pressure.
This pump is also equipped with an adjustable volume control and two hand-tight connectors that allow easy and quick connections without the need for any additional tools.
ADVANTAGE
Efficient for high pressure and vacuum generation
Speed to reach maximum pressure
APPLICATIONS

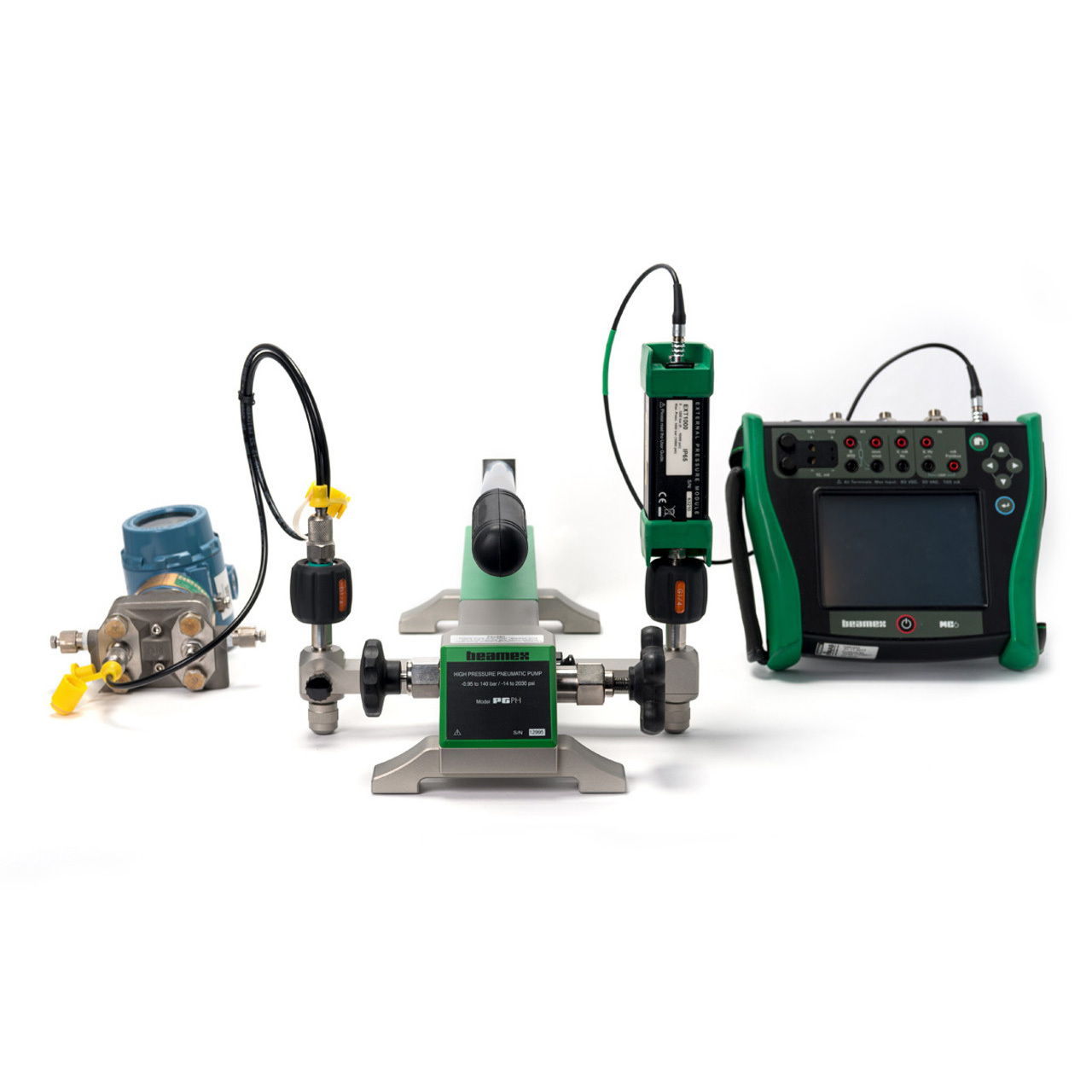

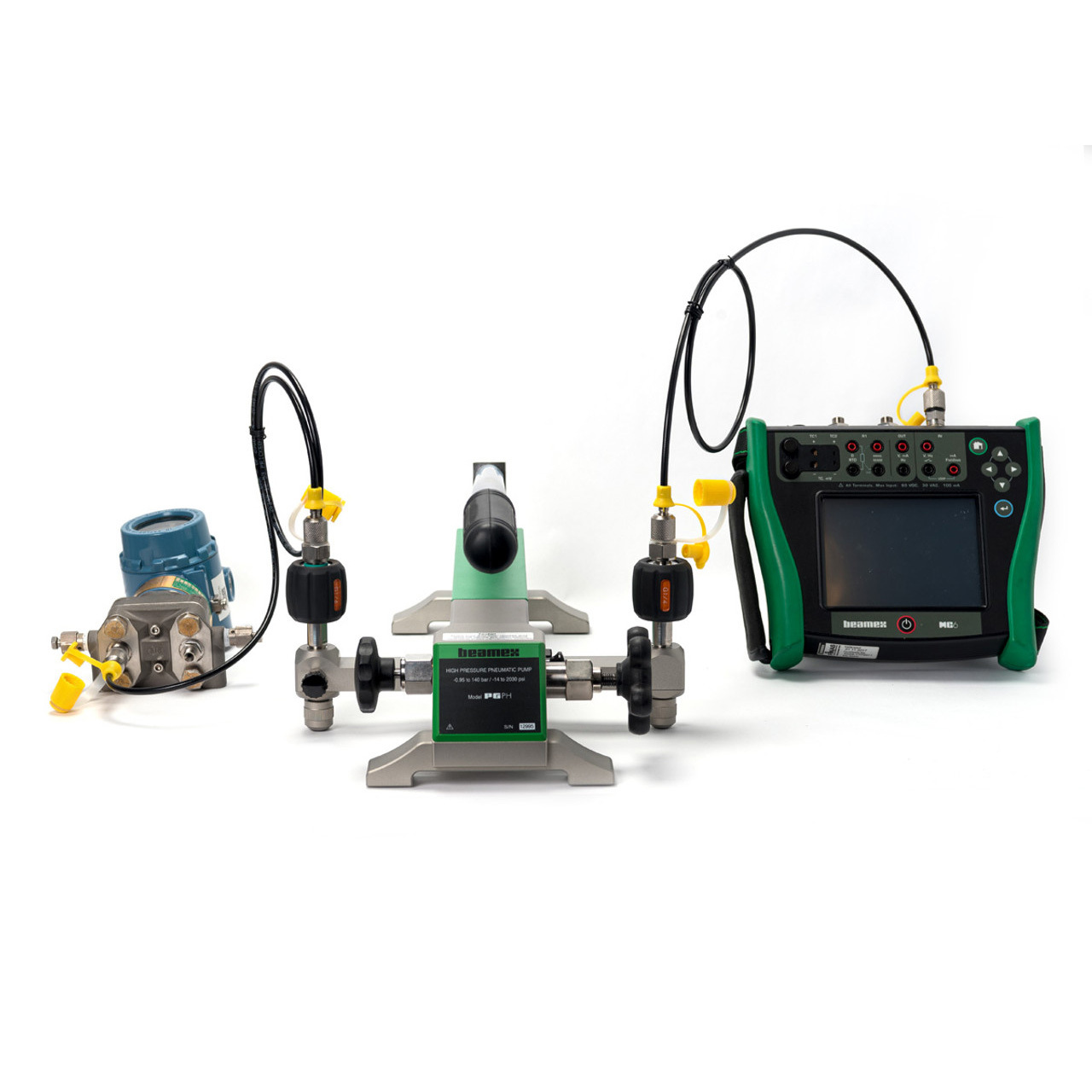

Pressure measurement and calibration
Pressure generation
Sectors of activity: Process industries in general
CHARACTERISTICS
Working range: -0.95… 140 bar
Fluid: mineral oil, distilled water
Technical specifications
Pressure range
0.95 … 140 bar / -13.7… 2 000 psi
Output thread
2 x G 1/4″ female
Humedad
< 85% RH
temperature
0 … -50 ºC
dimensions
23,6 cm x 15,9 cm x 7 cm
Peso
7.1 kg
Presión de seguridad
< 180 Bar (2600 psi)
Accessories
1/4″ male connector
Small bag (20 pcs.) of rings type NBR70 (size 6 x 2)
