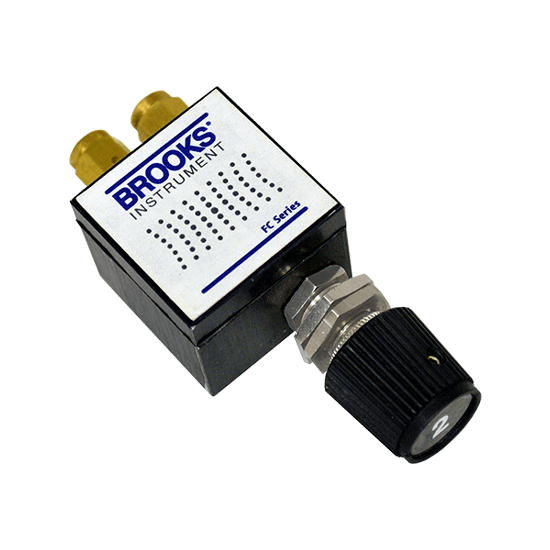

Models FC8744 / FC8800 / FC8900

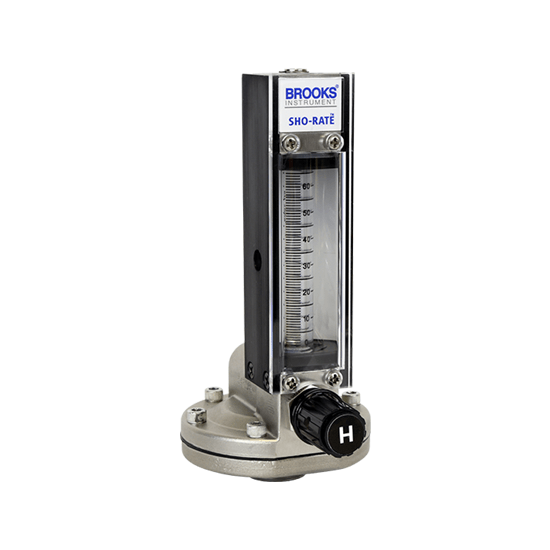

Supply or discharge pressures may vary. But with flow controllers from Brooks Instrument, the differential pressure across the integral manual flow regulating valve remains constant. An internal diaphragm-actuated control valve receives incoming pressure on one side and outlet pressure with spring action on the other. This design balances pressure variations to maintain a fixed differential pressure across the valve that ensures constant flow. The result is precise flow control for many gas and liquid-service applications. Can be used as a stand alone flow controller or integrally mounted to a flow meter to save space and improve installation.
Features
|
Benefits
|
Applications
|
Specifications |
Mechanical Diagnostics & Display Compliance
| Product Type | Mass Flow Controller |
| Differentiator | Available as Standalone or Integrally Mounted to Flow Meter |
| Performance | |
| Materials of Construction | Stainless Steel Brass Aluminum |
| Flow Range (Full Scale Capacity) | Water .024 – 480 gphAir .10 -2130 scfh |
| Accuracy | – |
| Max Temperature | 178oC (350oF) |
| Max Pressure | Refer to Maximum Pressure Ratings Table in Data Sheet |
| O-Ring Materials | Viton® fluoroelastomers Buna-N Kalrez® EPR Kalrez/Teflon® |
| Process Connections | 1/8″ – 1/4″ F-NPT 1/8″ – 1/4″ Tube Compression 1/4″ ID Hose 3/4″ F-NPT Integral connection |
| Alarms | – |
