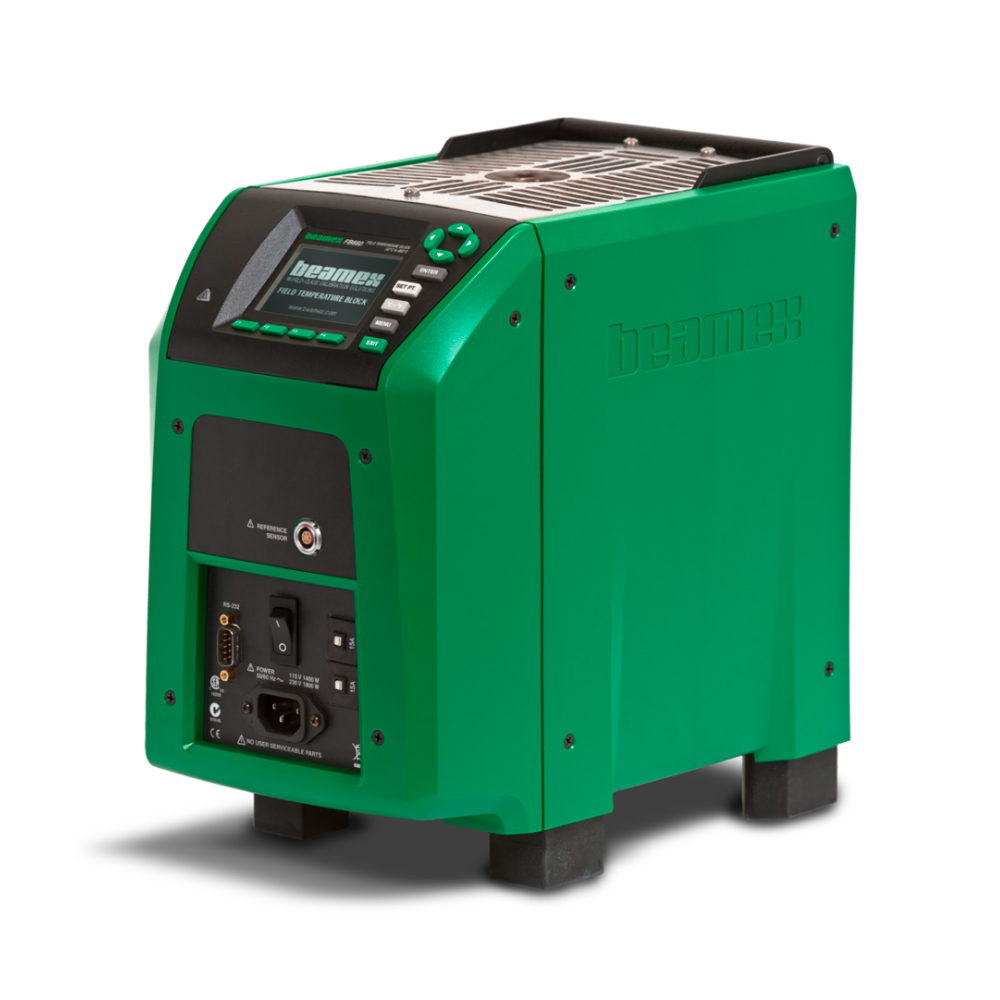

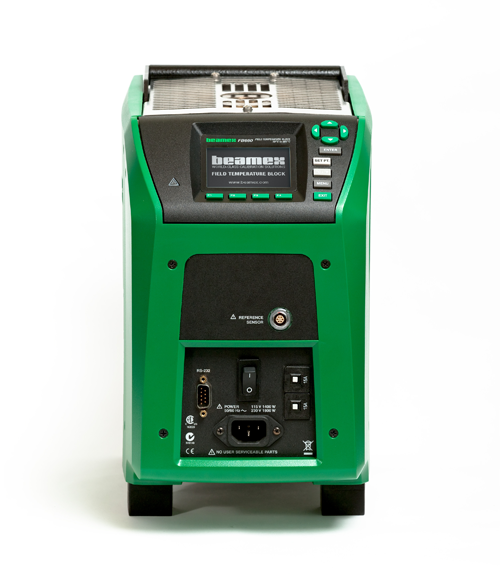

Dry field temperature block FB

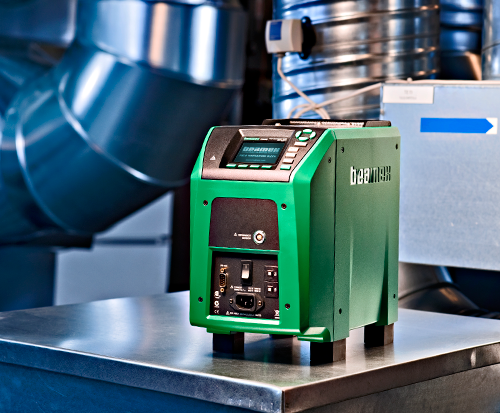

The FB field thermoblock is an ideal thermoblock for industrial use in the field, as it is lightweight, easy to transport and of excellent accuracy.

FB takes very little time to reach the most diverse temperatures, saving time and increasing productivity.

Its control technology offers excellent stability up to 0.01°C.

Having a liquid crystal display and user interface consisting of multilingual menus makes it easy to use.

Download datasheet

ADVANTAGE

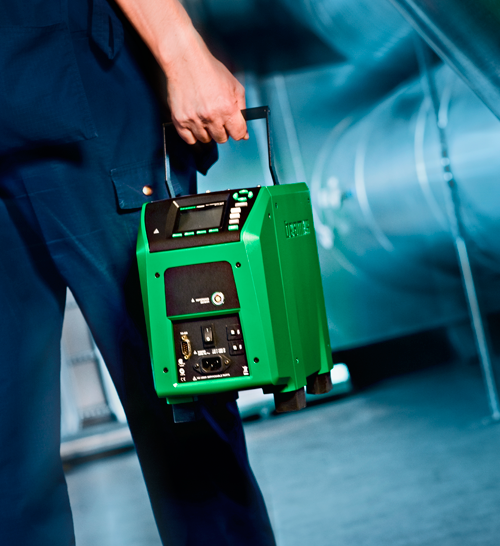

  • Lightweight, portable and fast field block
  • High accuracy
  • Input for high accuracy reference probe (model R)

APPLICATIONS

  • Temperature measurement and calibration
  • Sectors of activity: pharmaceutical, food and beverage plants, oil, gas, petrochemical and power plants and refineries

CHARACTERISTICS

  • Dual zone control techniques that guarantee excellent stability and uniformity
  • Immersion depth up to 105 mm
  • Temperature range from -25 °C to +660 °CC

Technical specifications

StabilityTecladoTecladoTen keys with decimal button and +/-. Function keys, menu key and ºC / ºF key

Depth of immersion 105 mm
Temperature range -25 °C … +660 °C
Reading accuracy Up to ±0.2 °C
Up to ±0.01 °C
Peso 7,3 kg … 8,16 kg
Dimensions 290 x 185 x 295 mm
Pantalla LCD, ºC or ºF user selectable
