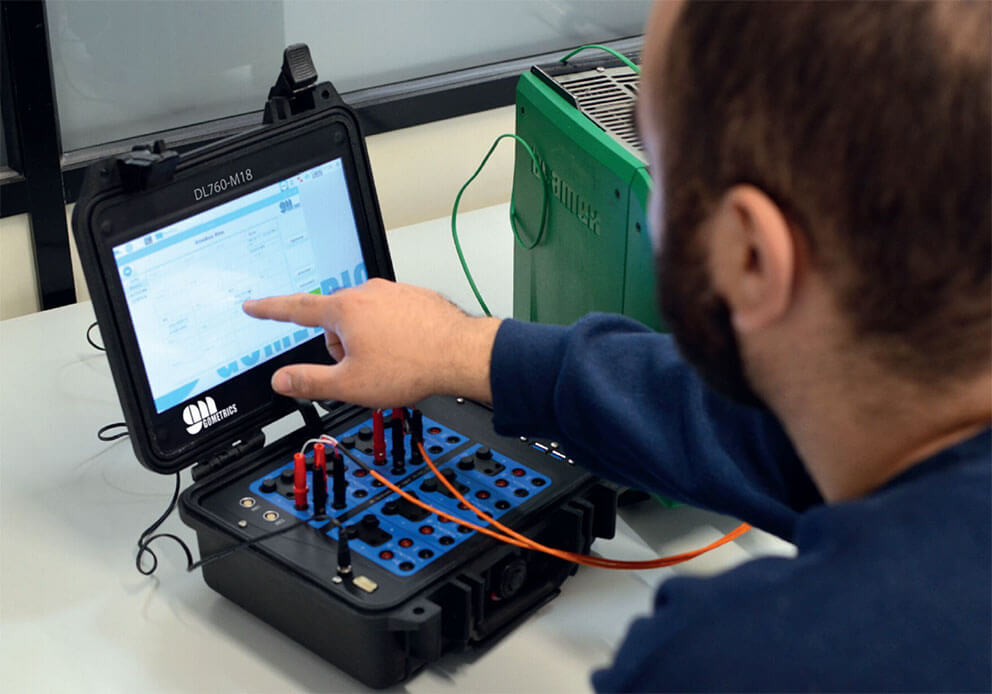

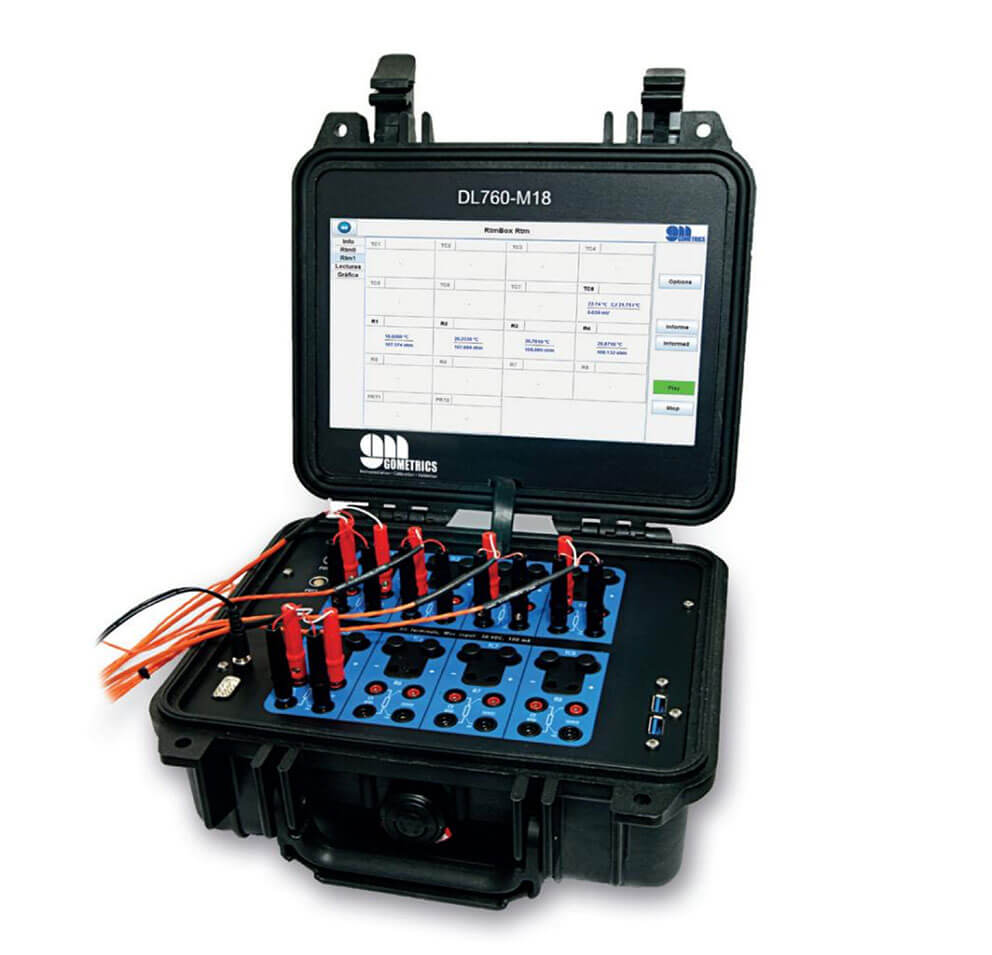

As a result of Gometrics’ experience in the world of industrial and laboratory instrumentation, the DL760-M18 reference temperature recorder (suitcase version with display) has been designed.
The DL760 is a compact, lightweight and portable benchtop multiplexer designed and manufactured by Gometrics for temperature recording and verification of RTD, TC and temperature transmitter sensors. There are three models: the DL760-18, the DL760-M18 case version and a reduced model, the DL760-10, which sees the number of channels reduced to 10 in total, 4 RTD’s, 4 terminals and 2 SPRT strada.
| RTD temperature probes | Pt100 (385), Pt200 (385), Pt1000 (385), Pt100 (3926), Pt100 (391), Pt25, Pt100 |
| Thermocouples | Type B, E, J, K, N, R, S, T according to IEC584-1 |
| Electrical signals | mV and Ohm – mA (with accessory) |
| Temperature scale | ITS90, CVD, IEC751 |
| Input channels |
|
| Uncertainty at 1 year (between 15ºC and 35ºC) |
|
| Electrical signals | ± (0.010% of reading + 4 μV) (-25 …+100 mV) ± (0.005% of reading + 4 milliohm) (0 …400 Ohm) ± (0.005% of reading + 40 milliohm) (0 …4000 Ohm) |
| Operating temperature and humidity | 0-50ºC – 0-80%RH without condensation |
| Temperature coefficient | <± 0.001% of the reading / ° C outside +15 … +35 ° C |
| Dimensions | 245 x 210 x 105 mm |
| Power supply | 100-240Vac, 50/60Hz (via external power supply included) |
| Warranty | 2 years |
| Certificates | Quality certificate and factory calibration certificate with ENAC standards are supplied. |
| PC Software | Yes |
| Models | DL760-18: values through PC DL760-M18: suitcase version with display DL760-10: with integral display |
