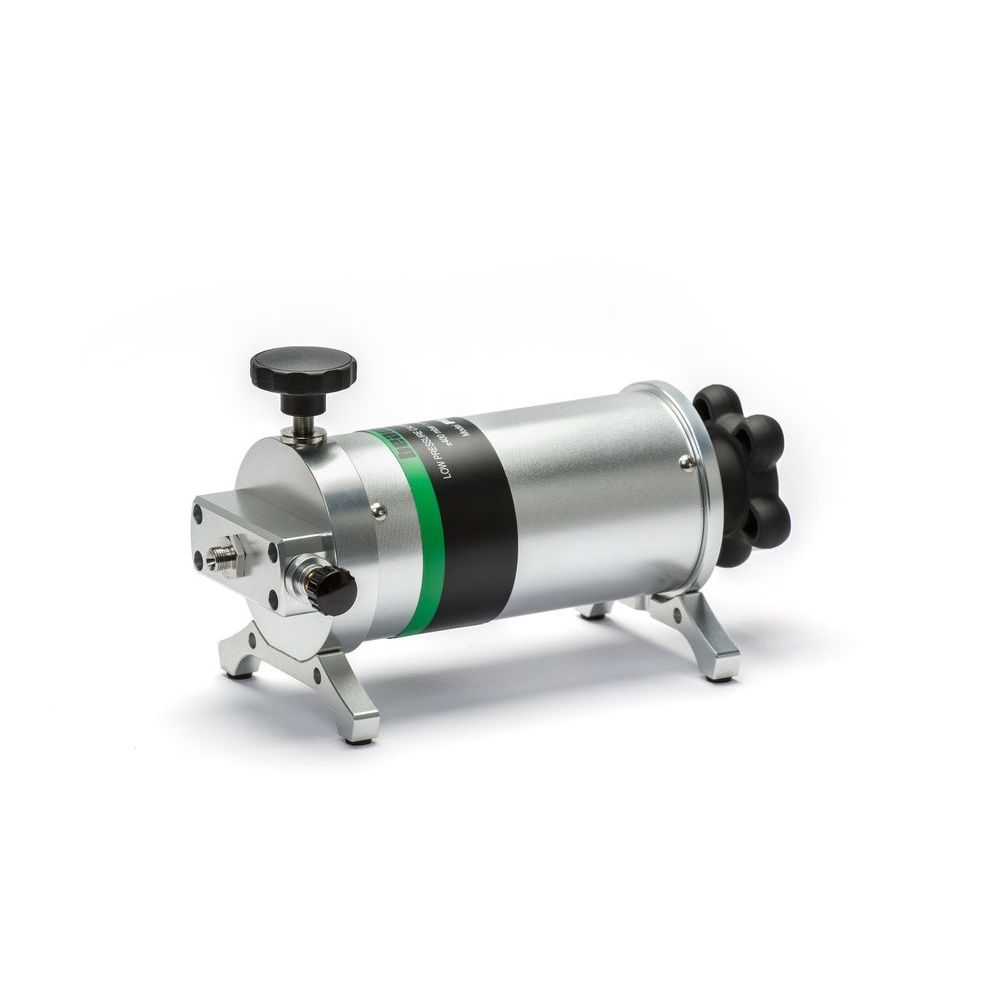

The PGL is a low pressure hand pump that uses air as the transmitting fluid. The pump is equipped with an isothermal bellows chamber in order to reduce possible changes of the pump.
ambient temperature during the calibration process.
Thanks to the screw driven volume control and fine adjustment, extremely precise and stable pressure adjustment is achieved.
Product Description
Manual handwheel with fine adjustment
Thick adjusting handwheel
Closing valve / venting valve
APPLICATIONS
Pressure measurement and calibration.
Pressure generation.
CHARACTERISTICS
Pressure range: -400 … 400 mbar / -160 … 160 iwc
Adjustment sensitivity: 0.001 mbar / 0.1mm H 2 O
Fluid: Air
Technical specifications
Range:400… 400 mbar / -160… 160 iwcAdaptersG 1/8″ / 60 – G1/8″. Sleeve for 4 mm ID flexible hoseTemperature:0… 50 °C / 32… 122 °FHumidity:<95% RHAdjustment sensitivity:0.001 mbar / 0.01 mm H2OSafety pressure:< 4 bar / 1,600 iwc< 4 bar / 1,600 iwcAirDimensions:24 cm x 11 cm x 14 cmWeight:1.2kg / 2.6 lb.Standard supply:Output connectors: G 1/8″ / 60 – G1/8″ installed on pump; Flexible hose 4 mm ID
A small bag with 10 O-rings of size and type: 10.1 mm x 1.6 mm NBR 70
User manualOptional accessories:Carrying case
Maintenance kit
Additional output connectors (same as standard supply)
Lubricant for coarse and fine adjustment steering wheel shafts
