Calibration and verification of measuring instruments is a fundamental pillar to ensure quality and accuracy in industrial processes. In response to the specific needs of a major power generation company in Spain, Gometrics has developed a comprehensive solution that optimizes and centralizes calibration processes: the multifunction calibration bench. This project arose from the need to centralize and optimize the calibration management of multiple field equipment in power generation facilities. The main objective was to establish a system that would allow calibrations with ENAC traceability to be carried out in an efficient and controlled manner, guaranteeing maximum precision in measurements critical to the operation of power plants.
Innovative and ergonomic design

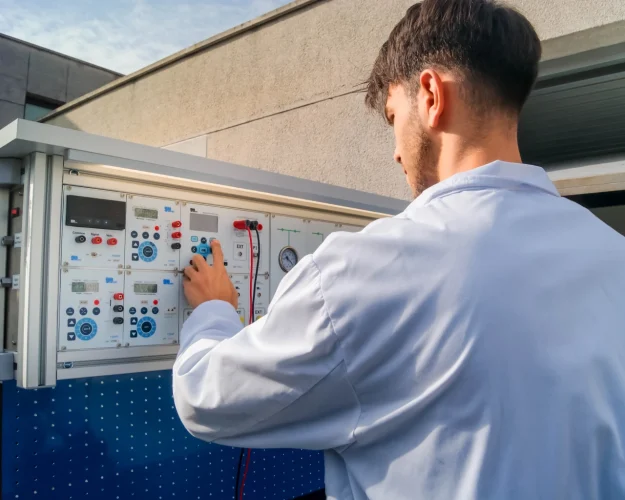

The system is distinguished by its modular and ergonomic design, incorporating a unique aluminum profile structure that integrates an upper instrumentation cabinet and a robust work table. A remarkable feature is its innovative lifting system, which allows the height of the upper panel and the work table to be adjusted, enabling the operator to work comfortably both standing and seated. The dimensions of the bench have been carefully studied to optimize the work space, with a length of 2424 mm, width of 705 mm and height of 351 mm, providing a wide and functional work surface with a depth of 395 mm.
Advanced technical capabilities
The calibration bench is designed to cover a wide range of calibration needs in the energy sector:
- Pressure instruments with ranges from vacuum to 350 bar
- Temperature probe calibrators (RTD, TC, Ω, mV) with high accuracy
- Electrical signals (mA, V, mV) for control instrumentation
- Critical process indicators and controllers
Accuracy and reliability
The system integrates state-of-the-art technology specifically selected for applications in the energy sector:
- MF680P multifunction calibrator with dual function display and integrated 24Vdc power source
- EXT pressure modules with ranges from vacuum up to 350 bar
- Tinycal series for specific current, RTD/PT100 and thermocouple calibration
- Pneumatic distribution system with independent regulators
Integral control and security
The installation incorporates multiple safety features essential for power generation environments:
- Complete electrical protection system
- Independent pressure regulators with indicating pressure gauges
- Dual LED lighting with independent control
- Secure storage system with lockable drawer system
Quality assurance and certifications
The calibration bench is backed by the most demanding certifications in the energy sector:
- ISO 9001:2015 for Quality Management Systems
- ISO 17025:2017 for the competence of calibration laboratories.
- ENAC-accredited calibration procedures
Impact on the energy industry
The multifunction calibration bench represents an innovative solution for the energy sector, where measurement accuracy is crucial for the efficiency and safety of operations. The centralization of calibrations in a single integrated system not only optimizes technical resources, but also ensures traceability and uniformity in the calibration processes of the various field instruments.
The implementation of this system in one of the main power generation companies in Spain has demonstrated its ability to significantly improve the management and control of calibrations, setting a new standard in the maintenance of critical instrumentation for the energy sector. Our specialists can offer you high quality, customized calibration solutions. With years of experience in the industry, we are committed to remain at the forefront of technology andservice excellence in the calibration of measuring instruments.
