ADVANTAGE
|
APPLICATIONS
|
CHARACTERISTICS
|
Technical specifications |
| Range | -0,999 mbar a Atm. |
| Size | Min. 218 mm and Max. 300 mm |
| Weight | 0,330 kg |
| Material | Chrome-plated steel |
| Connection | Fitting 1/8 “BSP M |

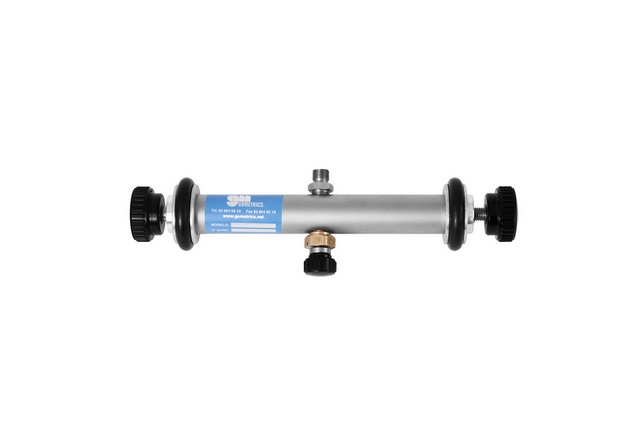

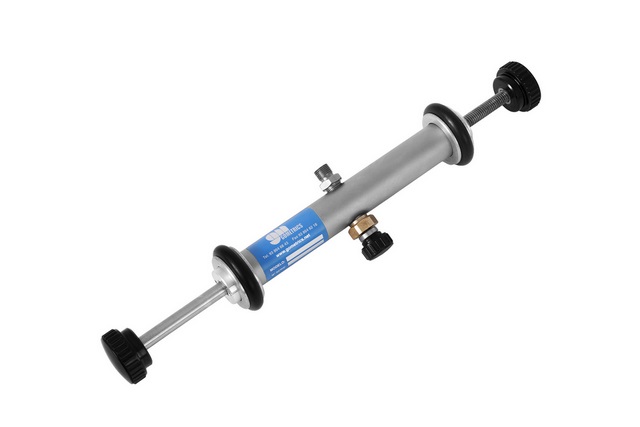

Pressure generation pump BP100V

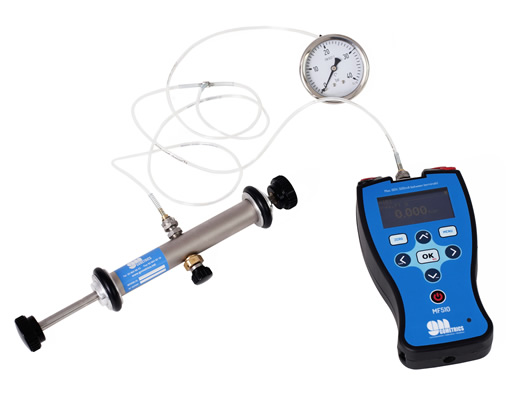

The Gometrics Model BP100V hand pump is a manual compressor capable of generating up to -0.999 mbar vacuum in closed circuits without volumetric consumption for fine adjustment of the desired pressure.
It is a small, lightweight pump with a purge system for zeroing the loop and a connection to the instrument to be calibrated.
It has a simple system of pneumatic pressure generation without the need for mains supply, being ideal for on-site calibration operations of pneumatic instruments, low pressure measuring equipment, simulation of signals for the processing of P transmitters, pressure switches, valve positioners, pressure gauges, etc.
