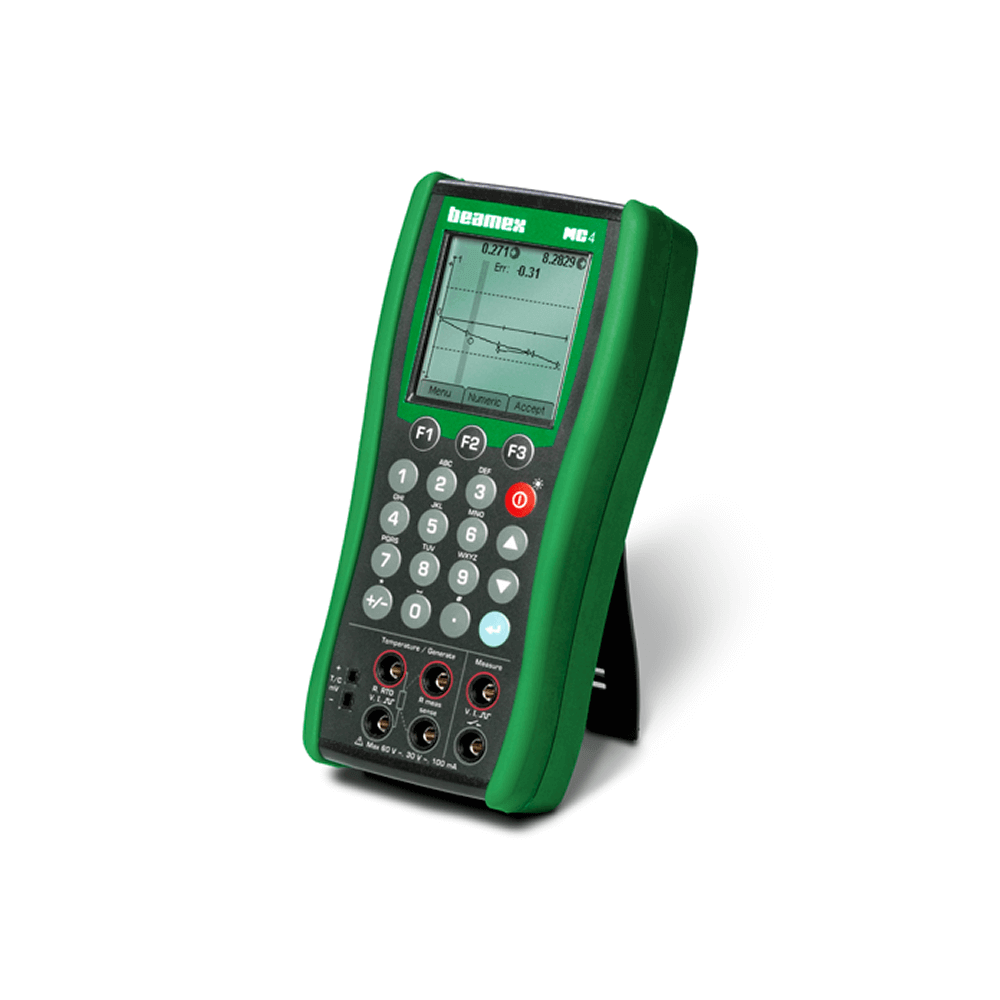

Documenting MC4 multifunction calibrator

The MC4 is a process calibrator-documenter. You can send instrument data from a computer to the MC4, and return MC4 calibration results to a computer using the Beamex CMX calibration software.

As it is a multifunction calibrator, the MC4 can calibrate parameters of various processes such as pressure, temperature and electrical signals.

One of the most important features of the MC4 is its high accuracy. All MC4s come standard with an accredited calibration certificate as proof of their accuracy. You can program the correction coefficients of a PRT probe to improve accuracy in temperature measurement.

Thanks to its large graphic display, the menu-based multilingual user interface and a full numeric keypad, the MC4 is easy to use and quickly learned.

Download datasheet

ADVANTAGE

  • Large graphic display
  • Menu-based multilingual user interface
  • Complete numeric keypad

APPLICATIONS

  • Measurement and calibration of pressure, electrical signals, frequency, temperature
  • Sectors of activity: Pharmaceutical, Food and beverage, Oil and gas, Electricity and energy, Services and process industries in general

CHARACTERISTICS

  • Multi-function calibrator that can calibrate parameters from various processes
  • Communication with Beamex CMX calibration software

Technical specifications

screen
60 mm x 60 mm x 60 mm backlit LCD, 160 x 160 pixels
Weight
720 … 830 g Dimensions 215 mm x 102 mm x 49 mm (alt x an x prof)
Keyboard
Of Membrane



Battery type NiMH rechargeable battery pack, 4000 mAh, 3.6V DC Charging time 5 hours on average Charger power supply 100…240 V de CA, 50–60 Hz Battery autonomy 13… 24 hours in metering mode, with the display light off. 8… 12 hours measuring 12 mA and feeding the loop, and with the light of the screen is lit. Autonomy with optional cartridge for alkaline batteries (4) type AA 4… 8 hours in metering mode, with the backlight off. 3… 4 hours measuring 12 mA and feeding the loop, and with backlighting on. Operational temperature –10 … 50°C Operating temperature during battery recharging 0 … 35°C Storage temperature –20 … 60°C
Humidity

0… 80% non-condensing HR Preheating time Specifications valid after 5 minutes of preheating Max. input voltage 30 V AC, 60 V DC
